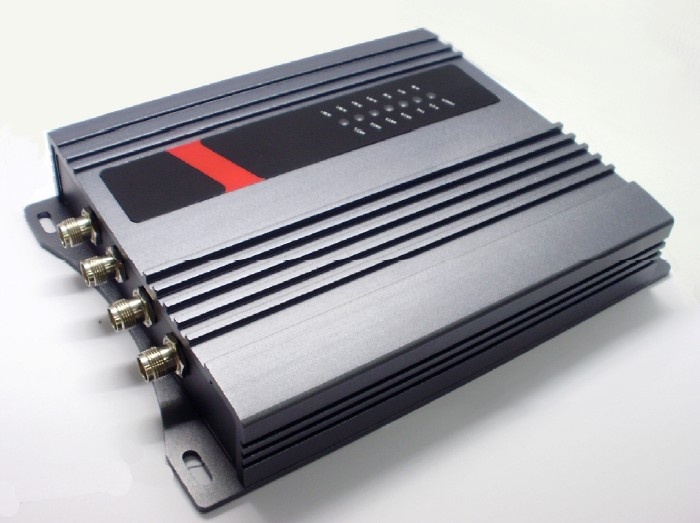

1. Model: HHUCR03
2. Size: 230 x 170 x 40mm
3. Weight: 1280g
4. Self-intellectual property
5. Operating Temp: -10 ~ +55℃
6. Storage Temp: -25 ~ +75℃
7. FHSS or fix frequency transmission
8. RF output power up to 30dbm(adjustable)
9. 4 TNC antenna ports
10.Support ISO18000-6C(EPC C1G2), ISO18000-6B protocol tag
11.860MHZ ~ 960MHZ frequency band(frequency customization optional)
12. Support auto-running, interactive and scanning work mode
13. Low power dissipation with single +9 DC power supply
14. Support RS232, RS485, TCP/IP with other interface optional
15. Equip with LED, Buzzer, GPIO and Relay
16. High reliability design under extreme environment condition
17. Provide DLL and Demonstration Software Source Code to facilitate further development
