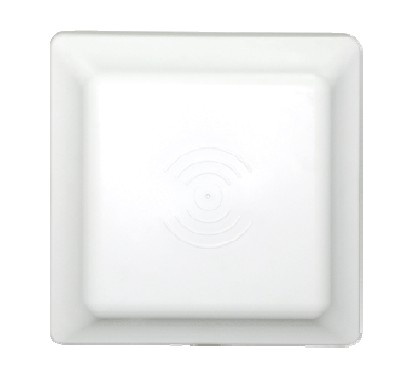

1. Model: HHUCC01
2. Size: 235 x 235 x 57mm
3. Weight: 900g
4. Self-interllectual property
5. FHSS or fix frequency transmission
6. Operating Temp: -10 ~ +65℃
7. Storage Temp: -25 ~ +75℃
8. RF output power up to 30dbm(adjustable)
9. 8dbi antenna optional with effect distance up to 4~6meter
10.Support ISO18000B, ISO18000-6C(EPC C1G2) protocol tag
11.860MHZ~960MHZ frequency band(frequency customization optional)
12. Support auto-running, interactive and trigger-activating work mode
13. Low power dissipation with single +9 DC power supply
14. Support RS232, RS485, Wiegand interface with optional RJ45(TCP/IP), WIFI, Bluetooth, GPRS interface
15. Provide DLL and demonstration software source code to facilitate further development
