SLE5528 Contact Smart Card Detailed Specifications:

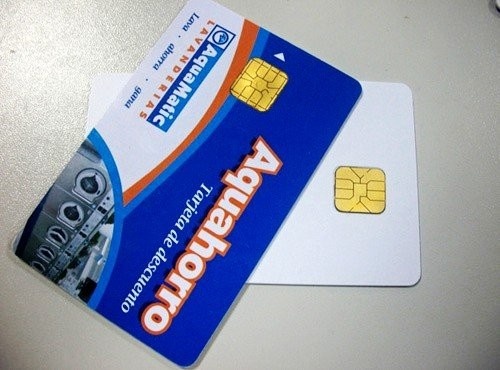

1). Card Name: SLE5528 Contact Smart Card
2). Material: PVC/PET/PP
3). Size: 85.5mm x 54mm
4). Thickness: 0.86mm
5). ISO 7816 compliant pad locations
6). 1024*8 bit EEPROM organization
7). Byte-wise addressing
8). Irreversible byte-wise write protection of lowest 32 address (byte 0-31)
9). 32*1 bit organization of protection memory
10). 2-wire link protocol
11). Answer to reset according to ISO standard 7816-3
12). Programming time 2.5mS per byte for both erasing and writing.
13). Minimum of 10000 write/erase cycles
14). Data retention > 10 years
15). Programmable Security Code (PSC)
16). Data write only after correct 3-byte PSC
17). Delivery way: by express, air or sea
18). Payment terms: T/T, Western Union, Paypal
19). Samples availability: free samples are available upon request
