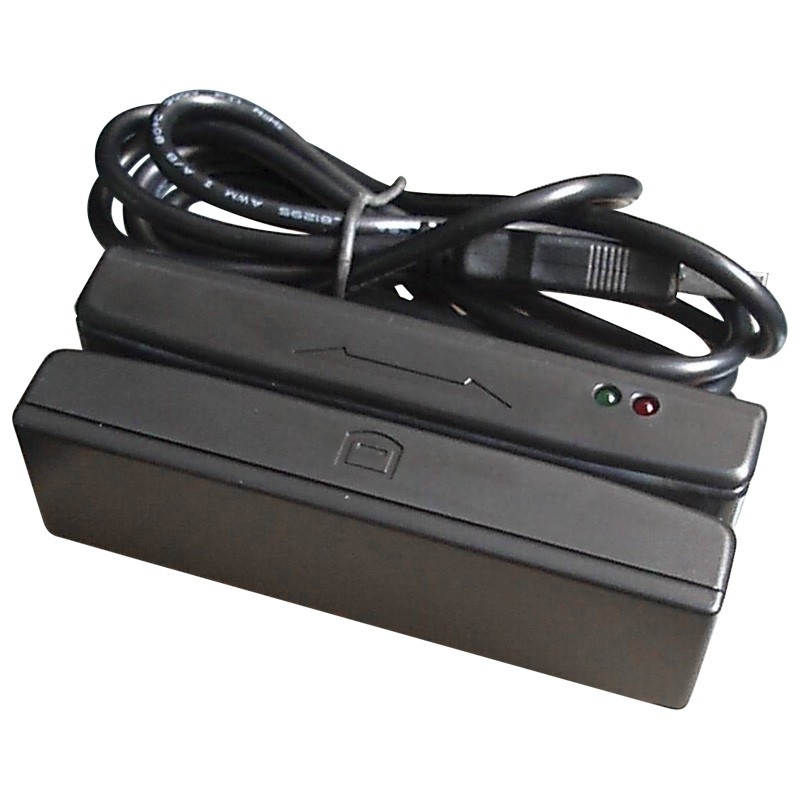

HiCo/LoCo Magnetic Card Reader and Writer Detailed Descriptions:
1. Product Name:HiCo/LoCoMagnetic Stripe Reader/Writer
2. Support: ISO, IBM, DIN and ANSI
3. RS-232 USB
4. Card Standard: ISO7811/2 ISO 7816
5. Recording Density: 210BPI, 75BPI, 210BPI
6. Recording Capacity:
a) 79 characters: seven bits
b) 40 characters: five bits
c) 107 characters: five bits
7. Power supply: a) LoCo: +5V DC ± 5%; b) +24V DC ± 5%
8. Power Consumption: a) Read: 200mA ± 15%; b) Write: 280mA ± 15%
9. Head function: a) Read: 1.5mm; b) Write: 3mm
10. Operation speed: a) reading 10 to 150cm/s; b) writing: 10 to 100cm/s
11. Error rate: less than 0.5% (JSE test Card)
12. Interface: RS-232 and USB
13. Lifetime of header: 500,000 card passes(one pass and one swipe)
14. Operation Humidity: 20 – 90% RH
15. Weight: 1.5Kg
16. Price Terms: We accept FOB/CNF/CIF price
17. Payment terms: T/T, Paypal or Western Union
18. MOQ: 5pcs
19. Delivery Way: By express, by sea or air
Applications: access control, bank system, member management system, time keeping, banking, ID recognition & credit verification.
